TAMAN TDE2-AC Single Phase 2 Motor Auto Pulsing HEPA Dust Extractor
- Twin motor single phase HEPA dust extractor for grinders up to 600 mm
- Auto pulsing filter cleaning, so suction does not fade and there is no compressor
- Two stage filtration with two H13 HEPA filters certified to EN 1822-1
- 400 m³/h airflow, 240 mBar vacuum, 2.4 kW on a 240 V supply
- Continuous drop down bag for dust free disposal
Description

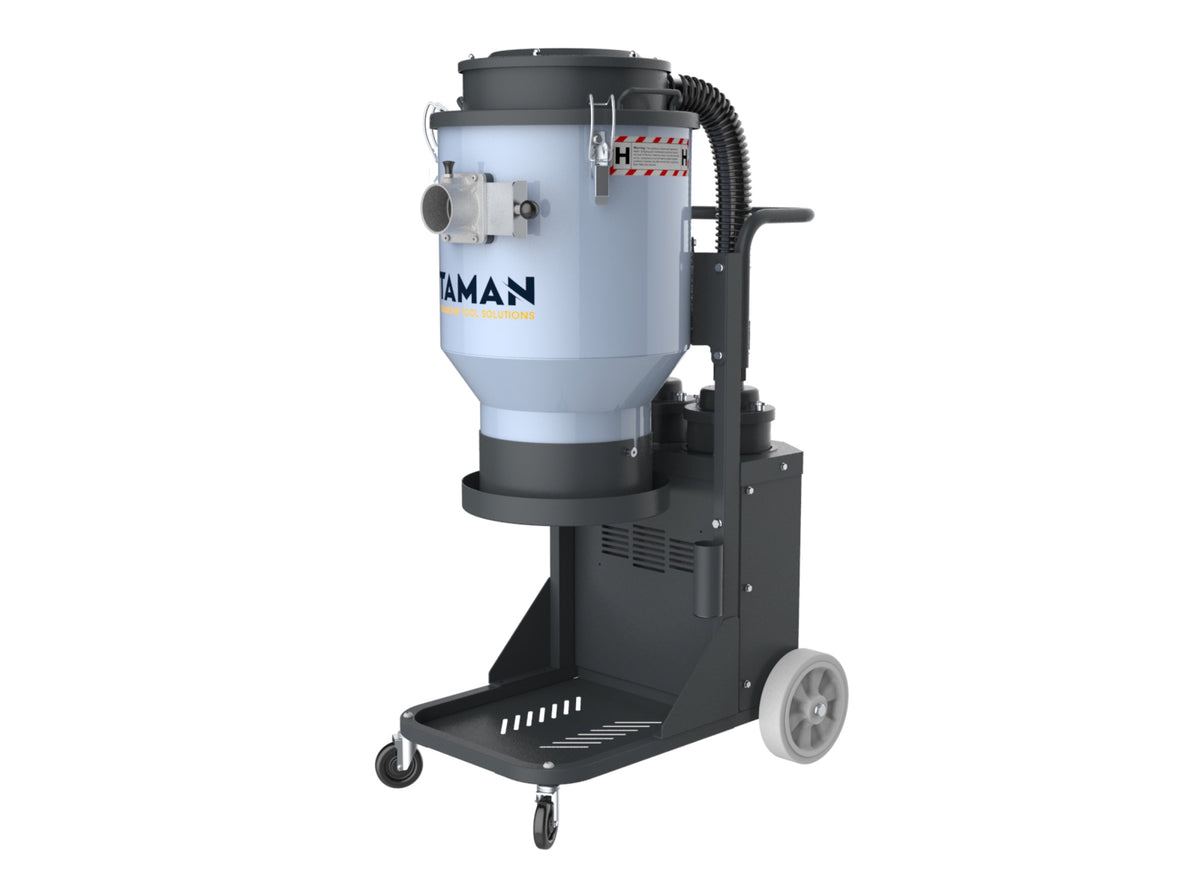

The TAMAN TDE2-AC is a twin motor, single phase HEPA dust extractor built to keep up with a floor grinder all day. Two Ametek motors move 400 m³/h through a two stage filter system, which is enough air for grinders up to 600 mm working width, including the TAMAN C250.
What sets it apart is auto pulsing filter cleaning. The two cylindrical primary filters take turns being pulse cleaned while the machine keeps running, so there is no air compressor to drag around, no stopping every fifteen minutes to shake the filter out, and no slow fade in suction as the day goes on.
Built for concrete dust
Grinding concrete releases respirable crystalline silica, which is the reason dry grinding without extraction is no longer acceptable on a jobsite. The TDE2-AC runs a two stage system: 3.0 m² of primary filter media, then two H13 HEPA filters, each individually tested and certified to EN 1822-1 and IEST RP CC001.6 at better than 99.99% efficiency at 0.3 microns. Dust drops into a continuous drop down bag, so a full bag is tied off and binned without a second dust cloud.
Features

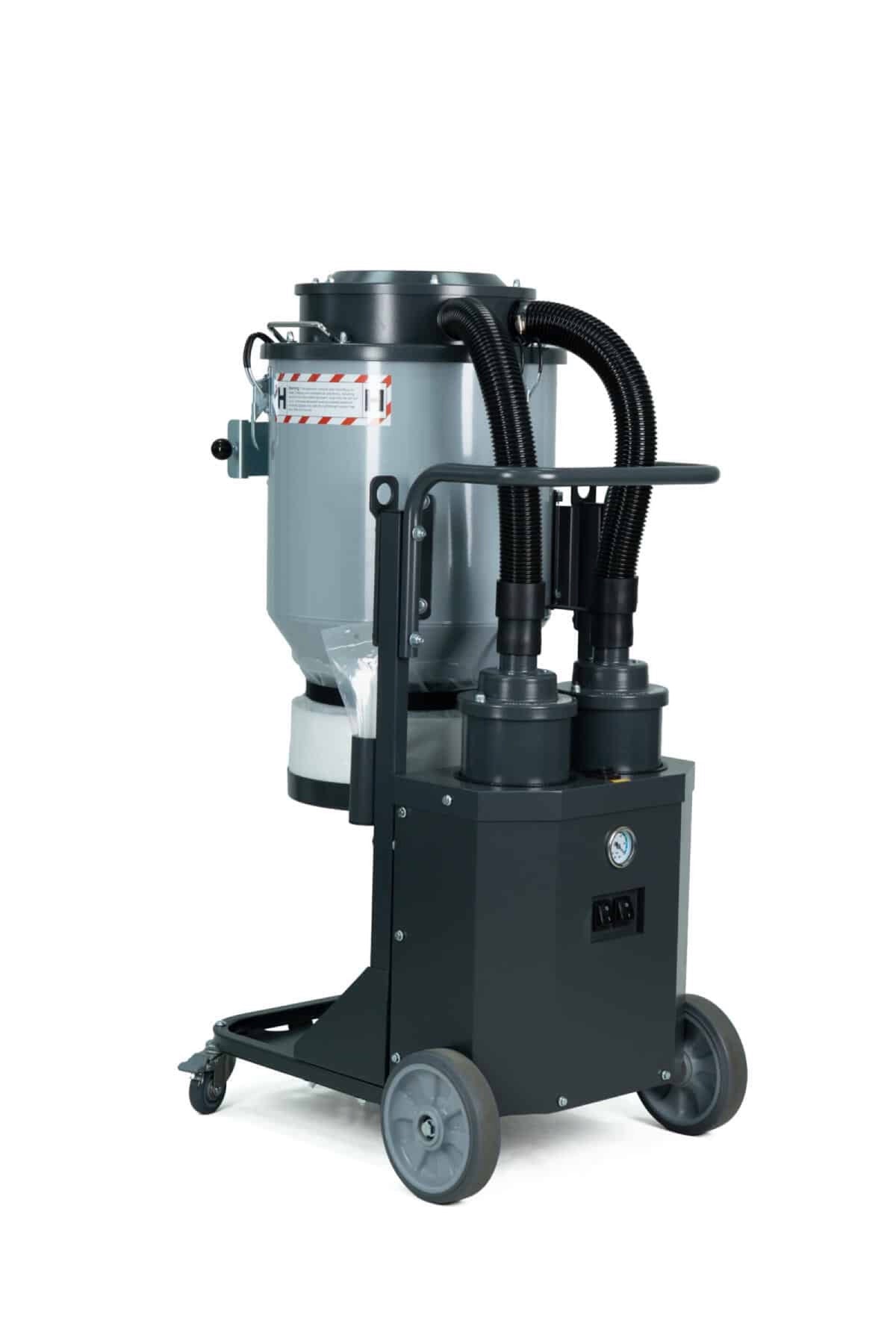

- Two Ametek motors: sized for grinders with a working width below 600 mm, with individual switches so you can run one motor or both.
- Auto pulsing cleaning: patented Bersi system, no air compressor and no manual filter purging.
- Two stage filtration: two cylindrical pre-filters, then two H13 HEPA final filters.
- Certified HEPA: every H13 filter is individually tested to EN 1822-1 and IEST RP CC001.6.

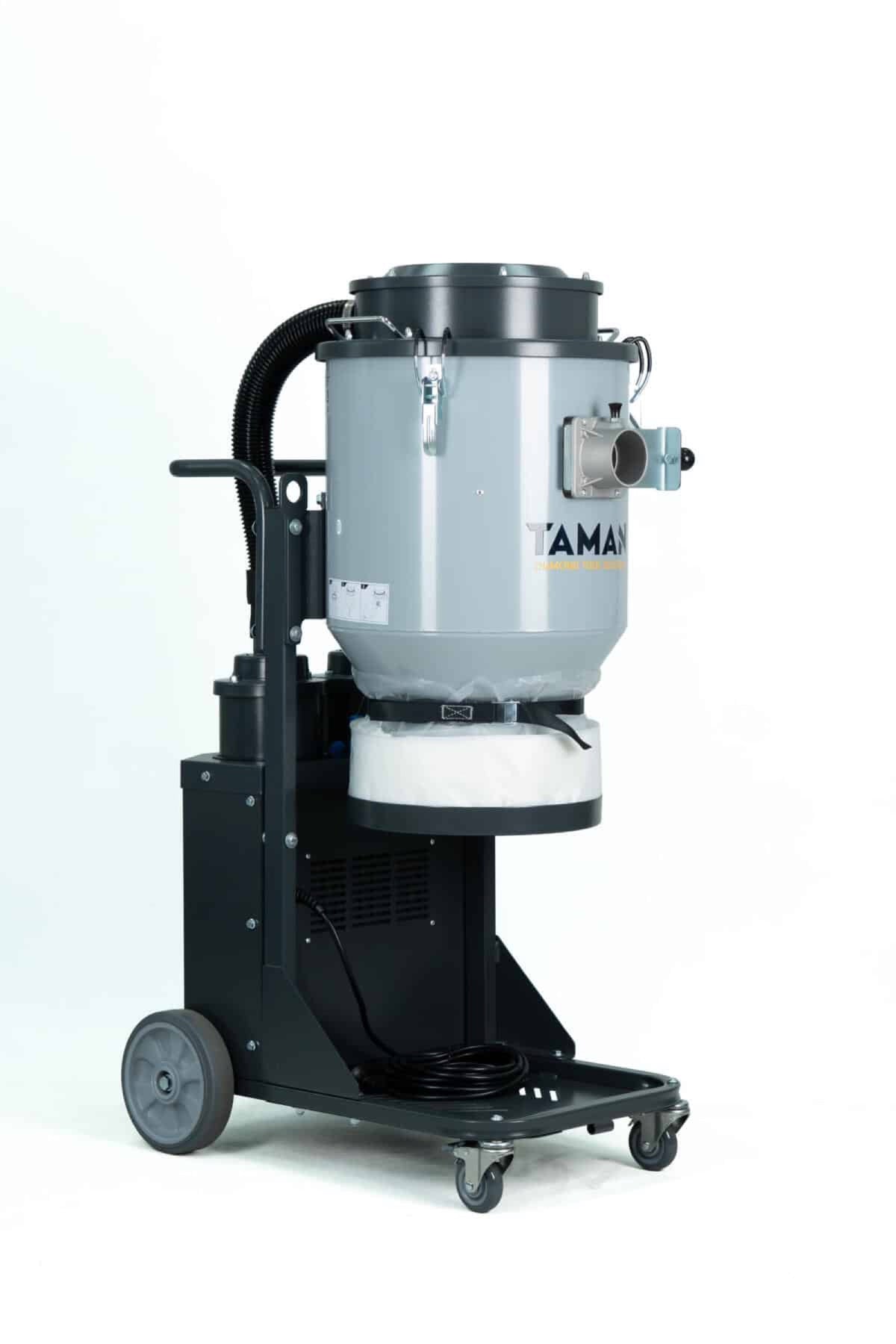

- Continuous drop down bag: clean, dust free disposal without opening the machine.

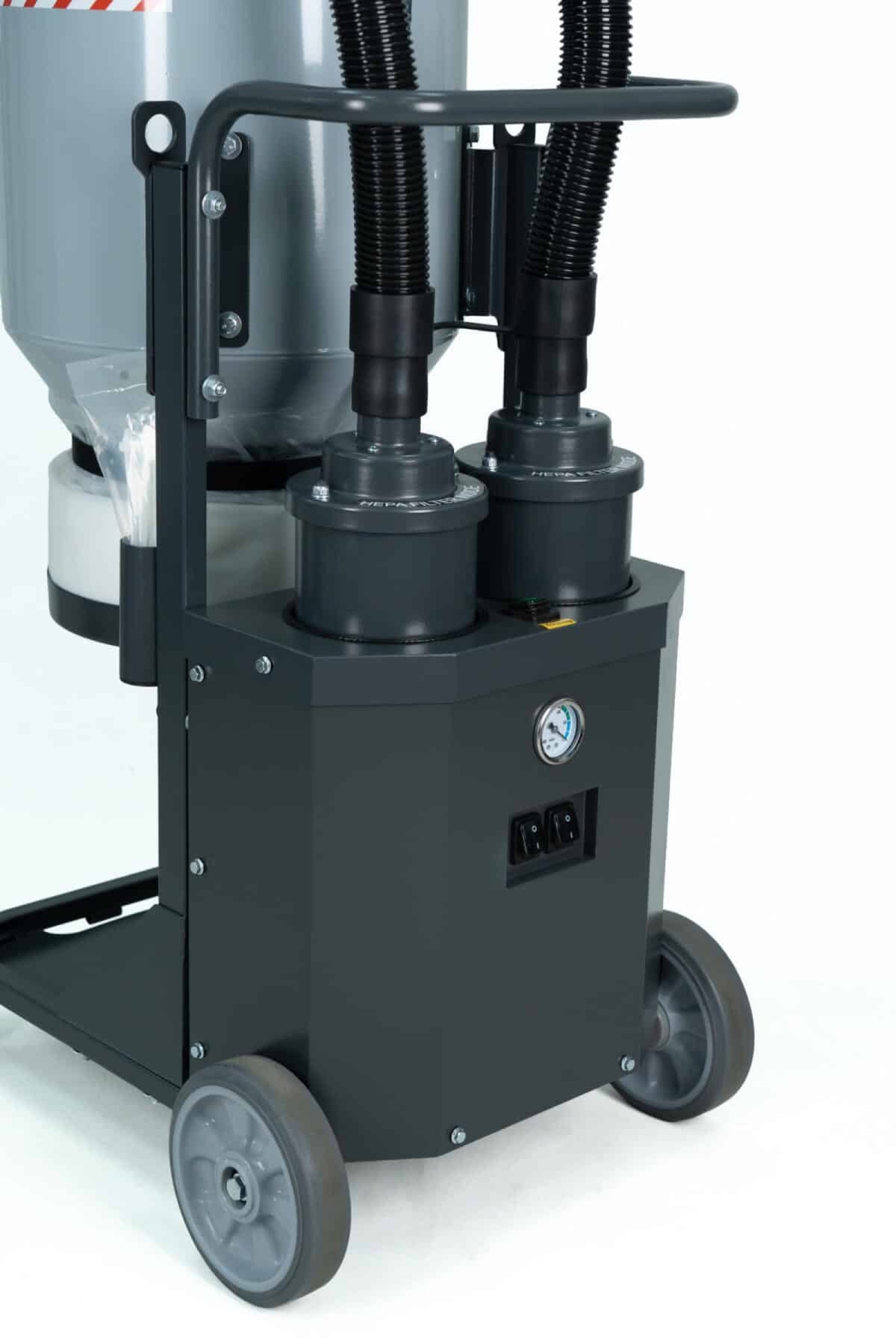

- Filter gauge: vacuum meter on the body so you can see filter condition at a glance.
- Site ready: large rear wheels and lockable front castors, single phase 240 V supply.
Specifications
| Model | TDE2-AC |
|---|---|
| Power | 2.4 kW |
| Power supply | 240 V, 50/60 Hz, single phase |
| Current | 9.6 A |
| Airflow | 400 m³/h |
| Vacuum | 240 mBar |
| Pre-filter | 3.0 m², better than 99.9% at 0.3 µm |
| HEPA filter (H13) | 2.4 m², better than 99.99% at 0.3 µm |
| Filter cleaning | Auto pulsing |
| Dust collection | Continuous drop down bag |
| Dimensions | 570 x 710 x 1300 mm |
| Weight (net / gross) | 68 kg / 80 kg |
| Suits grinders up to | 600 mm working width |

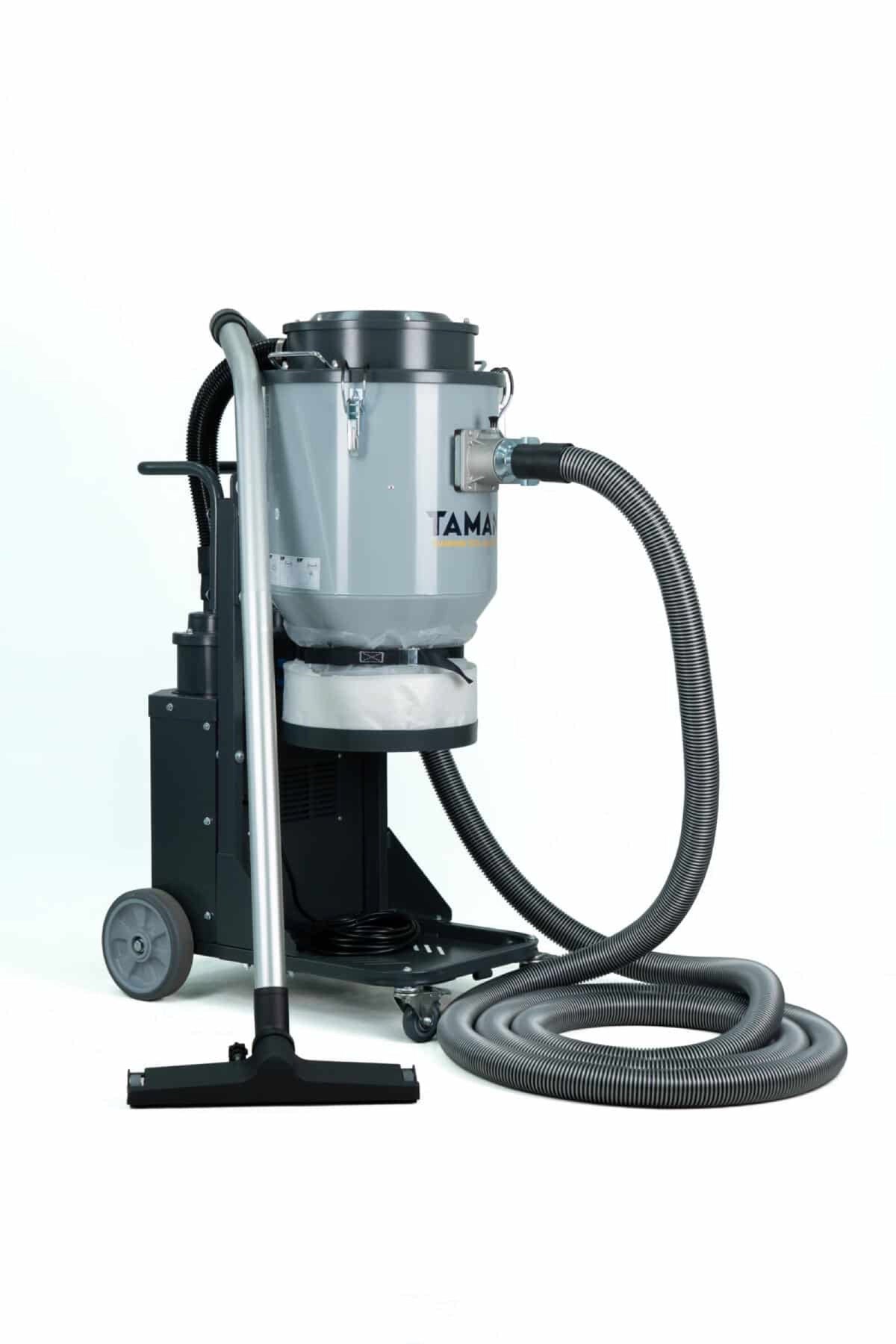

Supplied with
- D50 double layer EVA hose
- D50 floor brush
- D50 S wand
- D50 hose cuff
- D70 to D50 reducer
Pair it with
The TDE2-AC is matched to the TAMAN C250 grinder and to hand grinding with cup grinding wheels. Browse the rest of the Shimicoat tools and equipment range for the prep and application gear that goes with it.
Delivery and availability
Machinery ships on pallet freight direct from the supplier's warehouse, so it does not follow the same day dispatch that applies to our smaller items. Call (08) 9434 3302 or email info@shimi.com.au to confirm current stock and a delivery window before you book your job in.
Downloads & Guides
Ask a question
Frequently asked questions
The questions we get asked most about the TAMAN TDE2-AC Single Phase 2 Motor Auto Pulsing HEPA Dust Extractor.
What size grinder will the TDE2-AC keep up with?
What does auto pulsing actually do?
Does it handle silica dust?
What comes with it?
Does it run on a normal power point?
How is it delivered?
