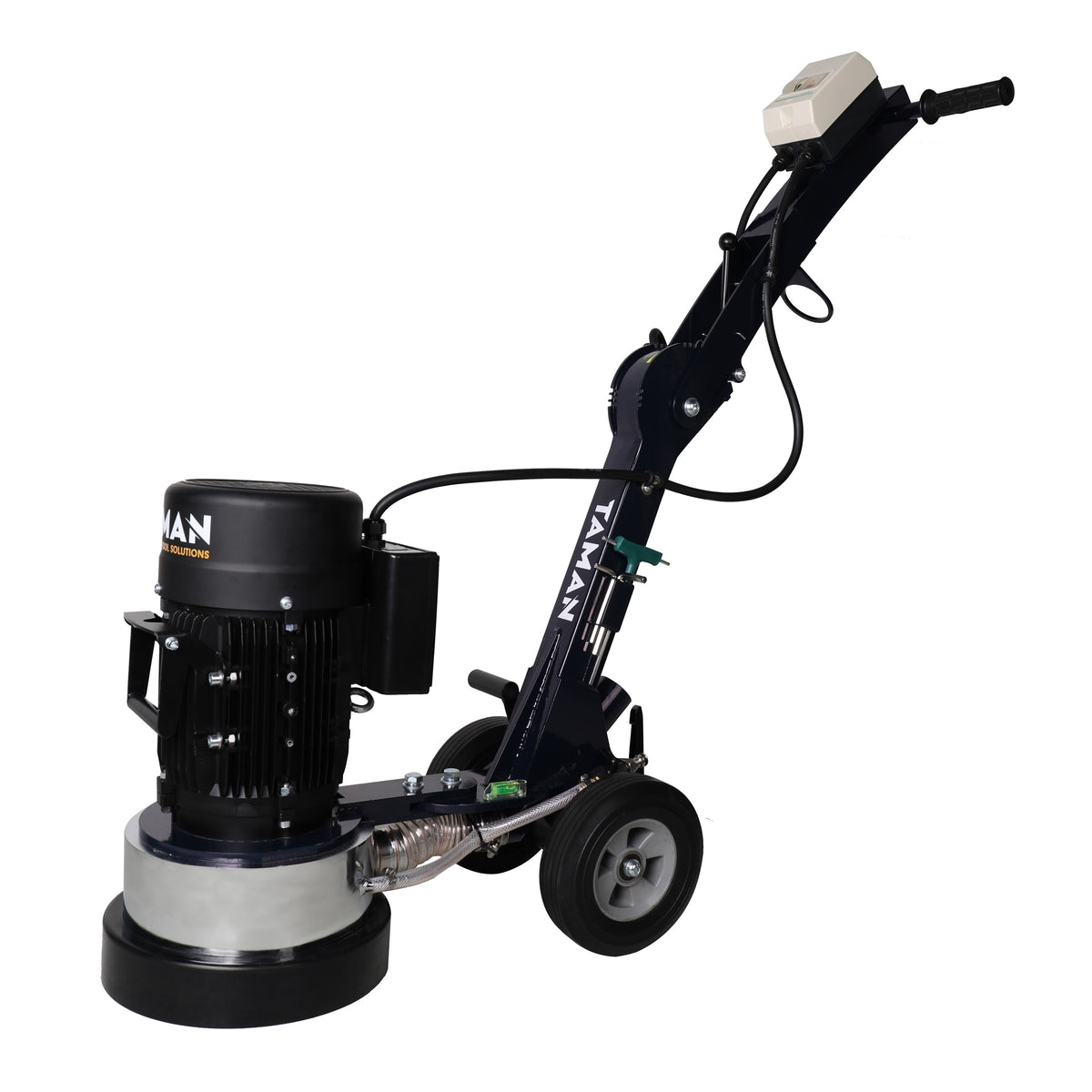

TAMAN C250 Concrete Floor Grinder and Edger 250mm
- 250 mm single phase concrete grinder that runs on a standard 10 amp power point
- Quick change shroud swaps from grinding to edging and cuts to 5 mm from the wall

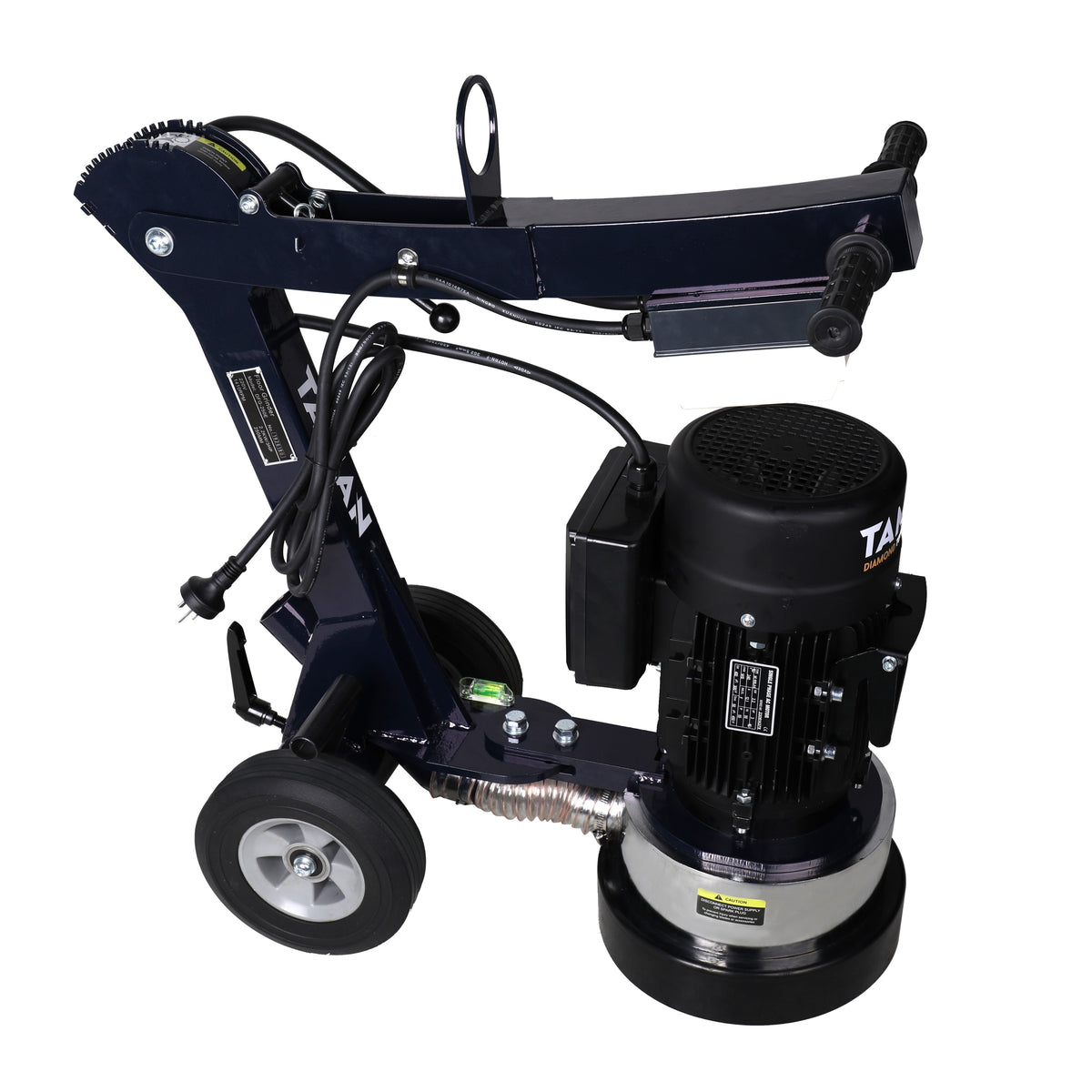

- 2.2 kW direct drive, 1034 rpm, 53 kg head pressure
- Wet or dry, with a water connection and a 50 mm dust port
- Redi-Lock tooling and a folding adjustable handle, 70 kg
Description
The TAMAN C250 is a single phase, direct drive concrete floor grinder built for the prep work that decides whether a coating lasts. It runs off a standard 10 amp power point, weighs 70 kg and grinds a 250 mm path, so one operator can profile a garage, workshop, patio or benchtop area without a generator or a three phase supply.

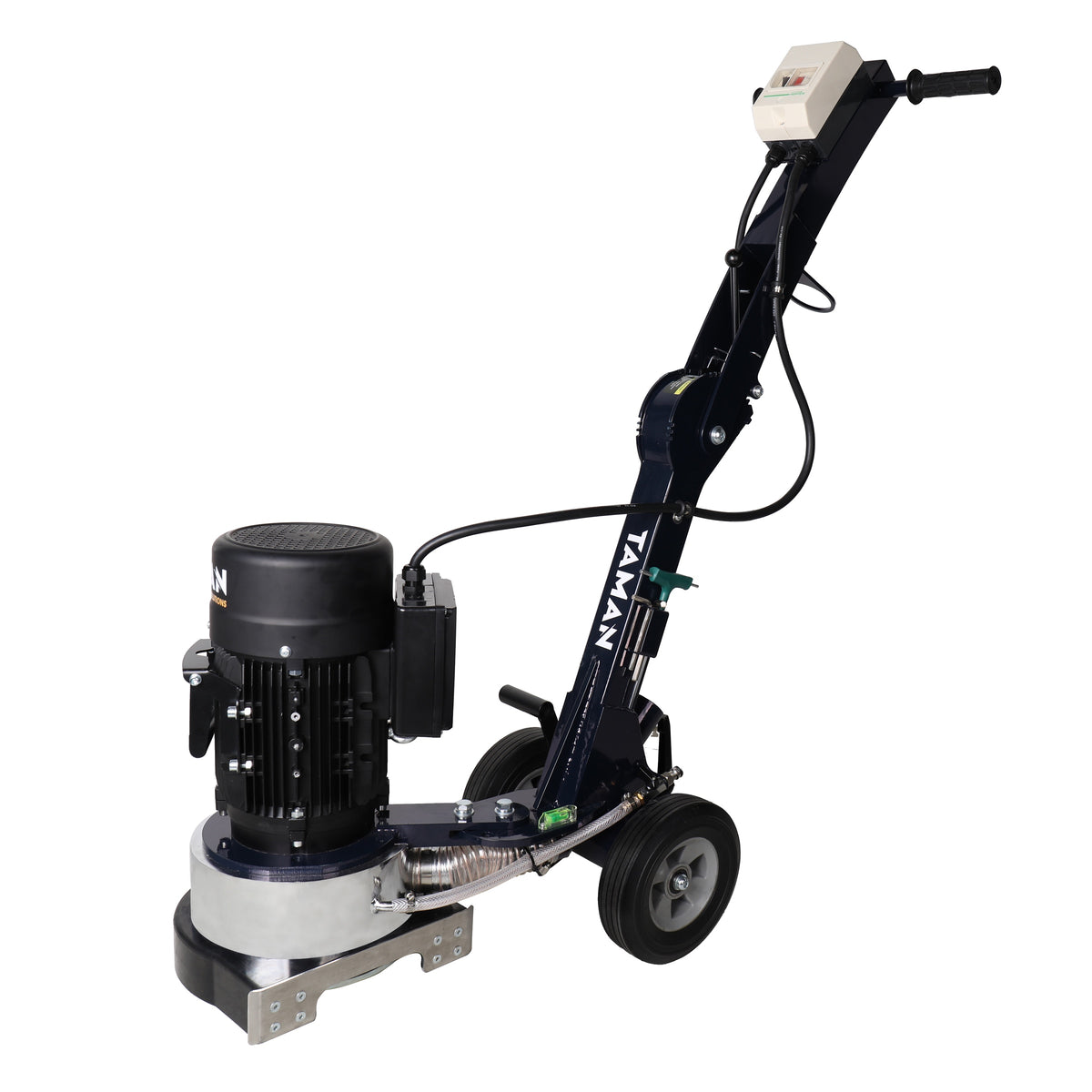

Its best feature is the quick change shroud. Swap to the edging shroud and the head cuts to within 5 mm of the wall, which removes the ring of unground concrete that normally shows through around the perimeter of a finished floor.
Why grinding matters before you coat
Mechanical preparation is the single biggest reason an epoxy or polyaspartic floor sticks or peels. Grinding opens the slab to a CSP 1 to 2 profile, takes off laitance, old paint, glue and sealer, and gives the resin something to key into. On a power trowelled slab, acid etching will not get you there.
Features
- Quick change shroud: the grinding and edging shrouds swap over in seconds.
- Grinds to 5 mm from the wall: the edging shroud takes the head right up to walls, columns and door frames.
- Wet or dry: a water connection is fitted for wet grinding, and a 50 mm dust port takes a HEPA extractor for dry work.
- Redi-Lock tooling: a Redi-Lock converter plate is fitted, so segments change over by hand in under a minute.

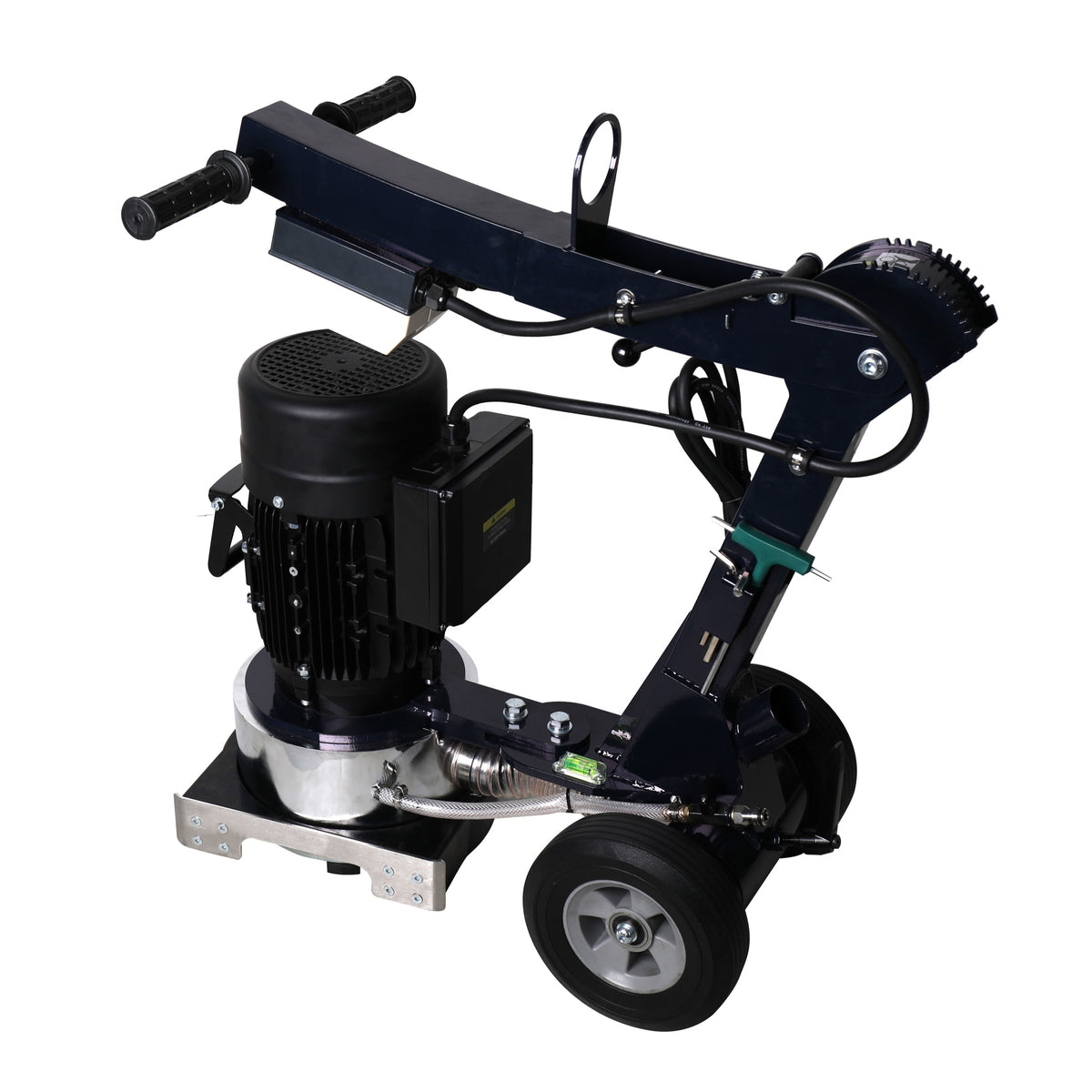

- Adjustable handle: sets from 165 to 60 degrees and folds flat for transport in a ute or van.

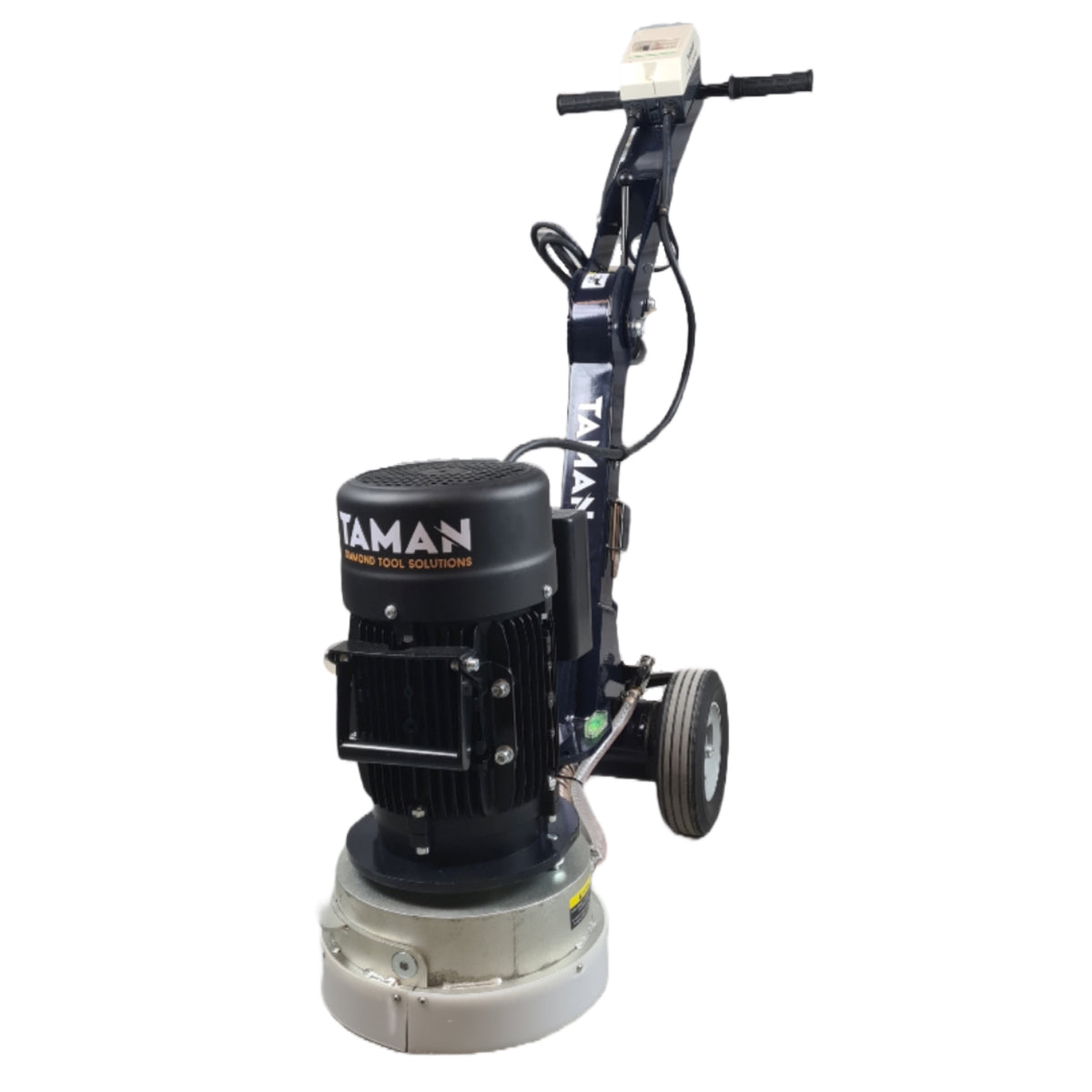

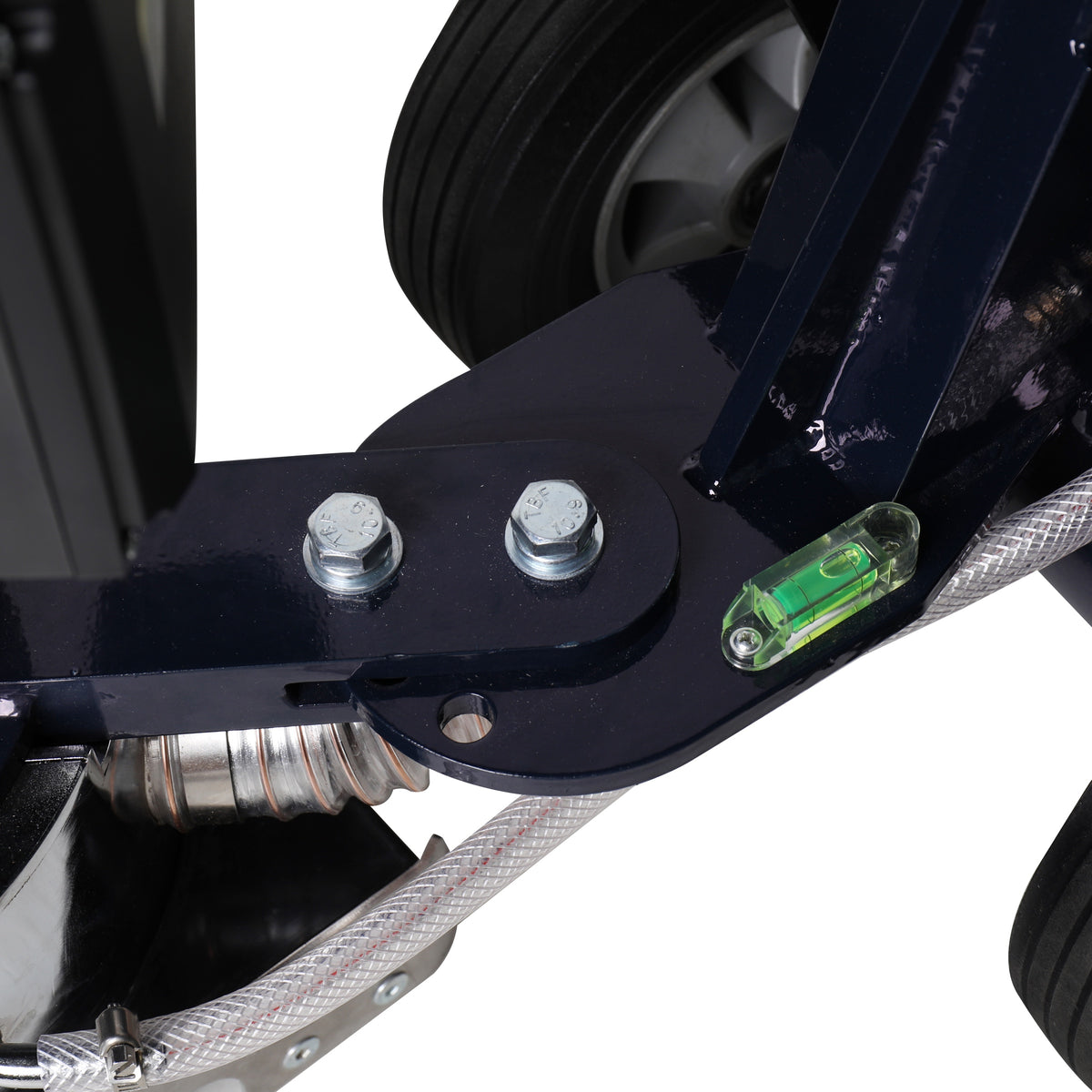

- Quality driveline: Schneider switchgear and a Moreflex coupling between the motor and the head.
- Height control device: adjusts the grinding head for wet work, dry work and edging.
Specifications
| Motor | 2.2 kW |
|---|---|
| Power supply | Single phase, 240 V, 10 A |
| Working width | 250 mm |
| Drive | Direct drive |
| Speed | 1034 rpm |
| Weight | 70 kg |
| Head pressure | 53 kg |
| Dust port | 50 mm |
| Tooling | Redi-Lock, or fixed plate |
| Use | Wet or dry |
| Handle | Adjustable, 60 to 165 degrees, folds for storage |
Pair it with
Run the C250 dry with the TAMAN TDE2-AC HEPA dust extractor to keep silica dust out of the air, and match the grit to your slab with RediLock Diamond Plates. Once the floor is profiled, the Shimicoat kit range takes it from bare concrete to a finished floor.
Delivery and availability
Machinery ships on pallet freight direct from the supplier's warehouse, so it does not follow the same day dispatch that applies to our smaller items. Call (08) 9434 3302 or email info@shimi.com.au to confirm current stock and a delivery window before you book your job in.
